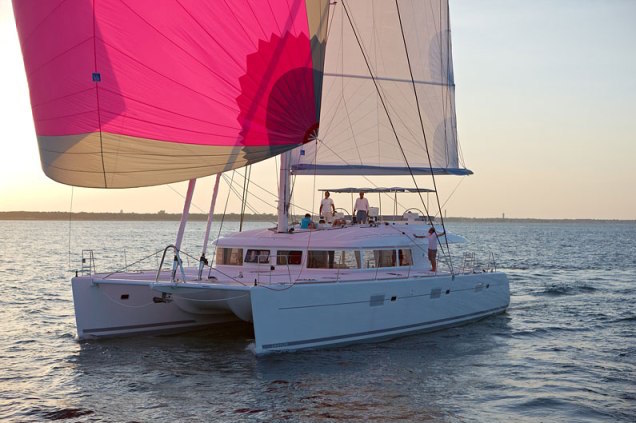

Lagoon 620 Catamaran

1,050,000

Lagoon 620 Catamaran ( 2012 ) ,

PROPULSION ENGINES & TRANSMISSION

• 2 Volvo D3-110 HP Diesel engines, 3000 rpm

• Engine throttles and control panel on port steering station on flybridge • Conventional stainless steel propeller shafts with “p” brackets

• 2 fixed propellers

• Engine access through large deck hatches • Stainless steel gas struts on hatches

• Ventilation system (natural aspiration and forced extraction)

• 1 x 220 V outlet per engine room,

ELECTRICS

• 220V AC Circuit - 2 outlets per cabin (owner’s cabin : 3),5 in the saloon, 4 in the galley, one per gangway, 1 per engine compartment, and 1 in the technical compartment - 220V electric panel with power source selector, voltmeter - 30 Amp dock inlet in the aft transom with 15m (49’ 3” feet) shore power cord

• 24 V circuit : - 24 V 420 Ah gel service battery bank (840 Ah optional) - 24V electrical panel with battery bank monitor - Breaker-box for the 24V system - 2 engine driven 110 Ah 24V Mastervolt

4 CABIN VERSION :

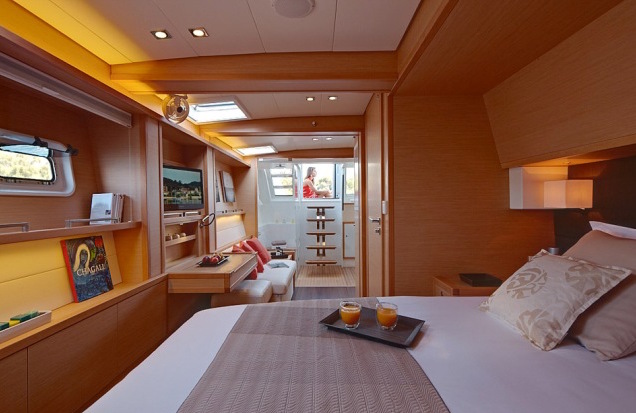

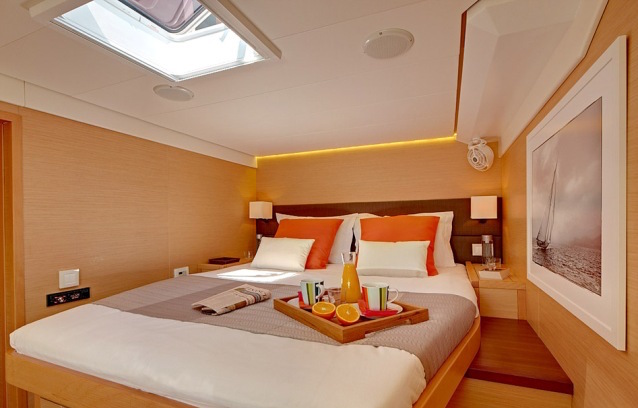

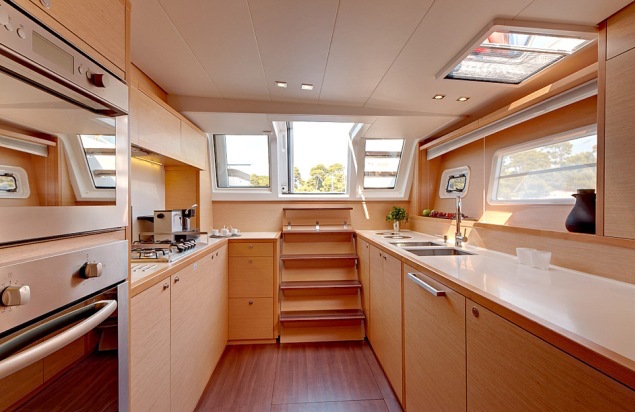

4 WASHROOMS-LATERAL GALLEY (aft starboard owner’s cabin) Starboard hull Aft starboard owner’s cabin• Access from the salon via gangway and wooden door• Queen size bed (2,05 m/6’9” X 1,60 m/5’3”) with side access and wood slats under mattress• 2 large storage drawers under bed

Mast / Rigging

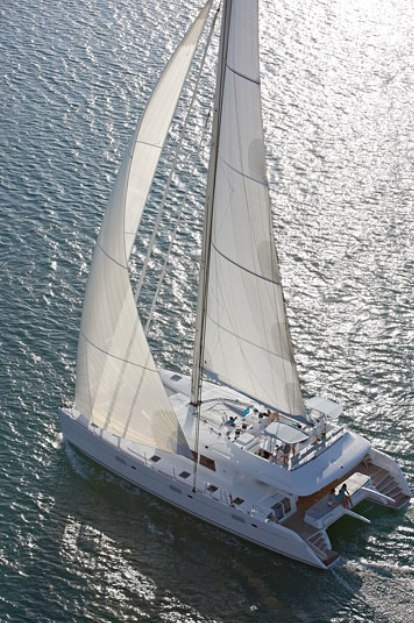

• Mast and boom in white lacquered aluminium • FRP longitudinal crossbeam • Aluminium transversal crossbeam • Adjustable lazy-jacks with spreaders Sails • Full Batten double thickness 146m2 (1571 sq Feet) « Dimension Polyant » - type Mainsail. 3 reefs • Lagoon logo printed in the main sail • Double thickness 97m2 (1044 sq feet) «Dimension Polyant » - type furling genoa. UV protective strip

LOA.................................................... 18,90 m / 62’

LWL.....................................................18,20 m / 59’9’’

BOA.....................................................10,00 m / 32’10’’’

Mast Height Over Water .....................31 m / 101’9’’

Draft.....................................................1,55 m / 5’1’’

Light displacement (EEC)....................32,24 t / 71 089 Lbs

Full batten main...................................139 m² / 1 496 sq.ft.

Square top mainsail (opt.)....................146 m² / 1 571 sq.ft.

Furling genoa ......................................91 m² / 979 sq.ft.

Furling staysail (opt.)............................48 m² / 516 sq.ft.

Spinnaker (option) / Spinnaker (opt.)............300 m² / 3228 sq.ft.

Gennaker (option) / Furling genoa (opt.).......190 m² / 2044 sq.ft. Eau /

Water............................................................4 x 240 l /4 x 63

Fuel .............................................................2 x 650 l / 2 x 172 US Gal

Standard engine size...................................2 x 110 CV / 2 x 110 HP

Interior finish..................................... Light oak alpi and laminated dark brown floor

Architects...................... Marc Van Peteghem & Vincent Lauriot Prévost (VPLP)

Certification CE / EC Certification ..................................................... A : 14 ; B : 14 ; C : 16 ; D : 30

Please contact for more information.
